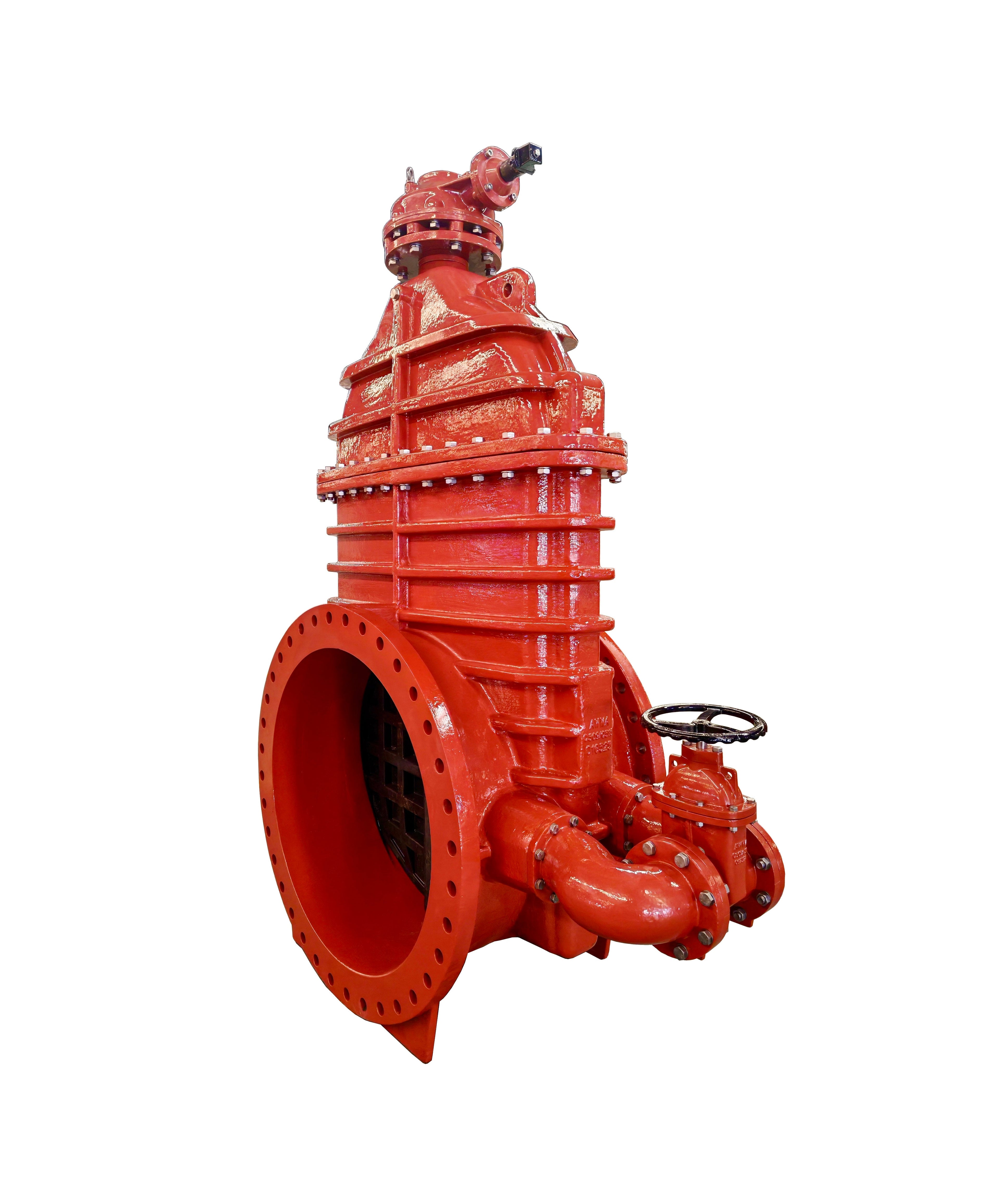

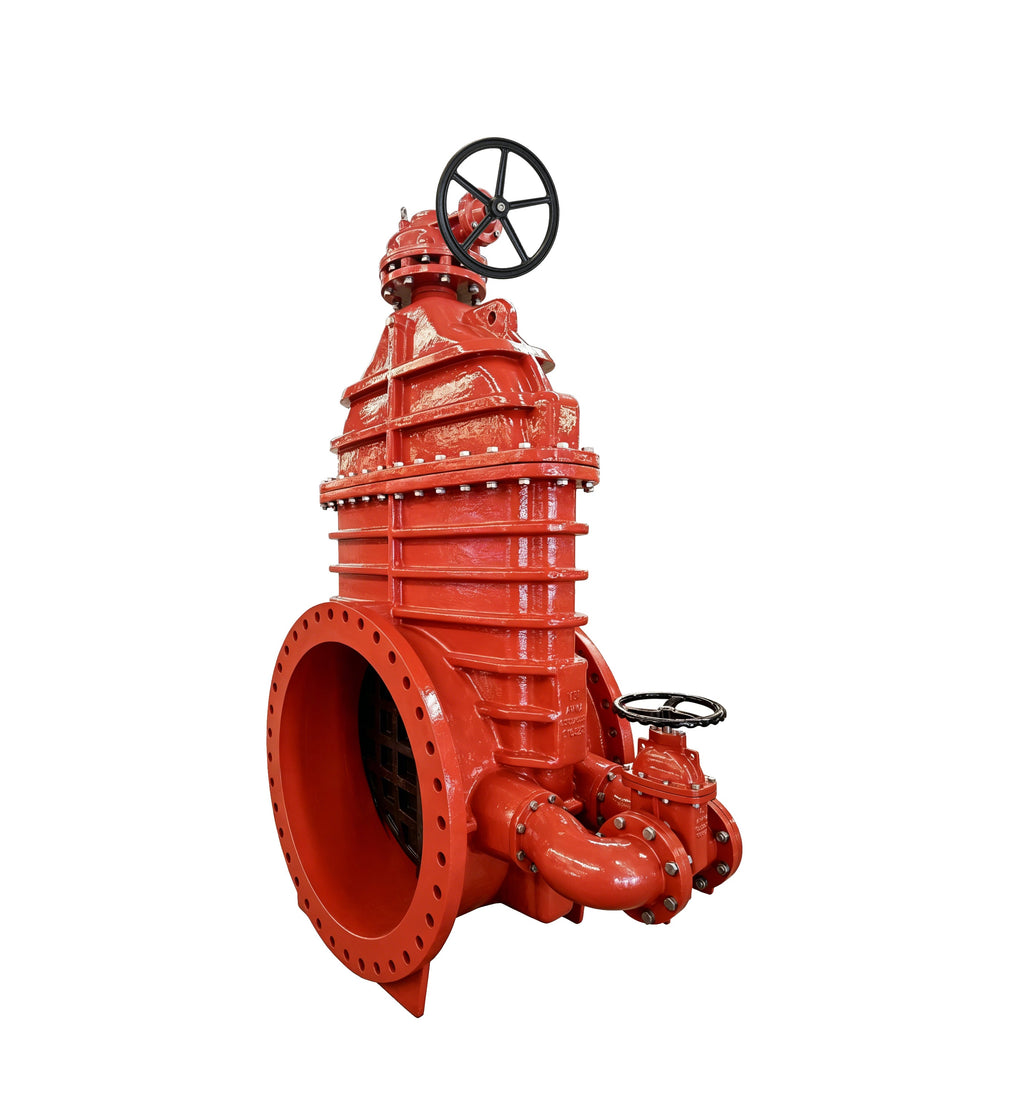

AWWA C509 Flanged Resilient NRS Gate Valve with Capnut & Bevel Gearbox & Bypass 250PSI (JHZ45XC-GB)
$0.00
Overview:
The AWWA C509 NRS FLG x FLG with Gearbox (JHZ45XC-GB) is a durable and high-performance gate valve designed for use in municipal, industrial, and commercial water systems. Featuring a non-rising stem (NRS) design, it offers reliable operation even in confined spaces, while the gearbox adds additional control for precise flow management.The valve's resilient seat guarantees a tight, leak-proof seal, even under varying pressure conditions, and the integrated bypass system reduces operational torque, extending the valve's lifespan.
Key Features:
- Size Range: 14" - 48"
- Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
- Certification: Approved by NSF61
- Design Standards: Complies with ASME B16.1 Class 125
- Pressure Rating: 300PSI 250PSI and 200PSI available upon request
- Connection Type: Flanged to ASME B16.1 CL 125 and ASME B16.42 CL150
- Operating Temperature: 32℉ - 176℉
- Special Features: All JHZ series valves can be equipped with a gearbox for enhanced control
- Applications: Suitable for large-scale water distribution, industrial pipelines, and municipal infrastructure, where precise flow control is required
