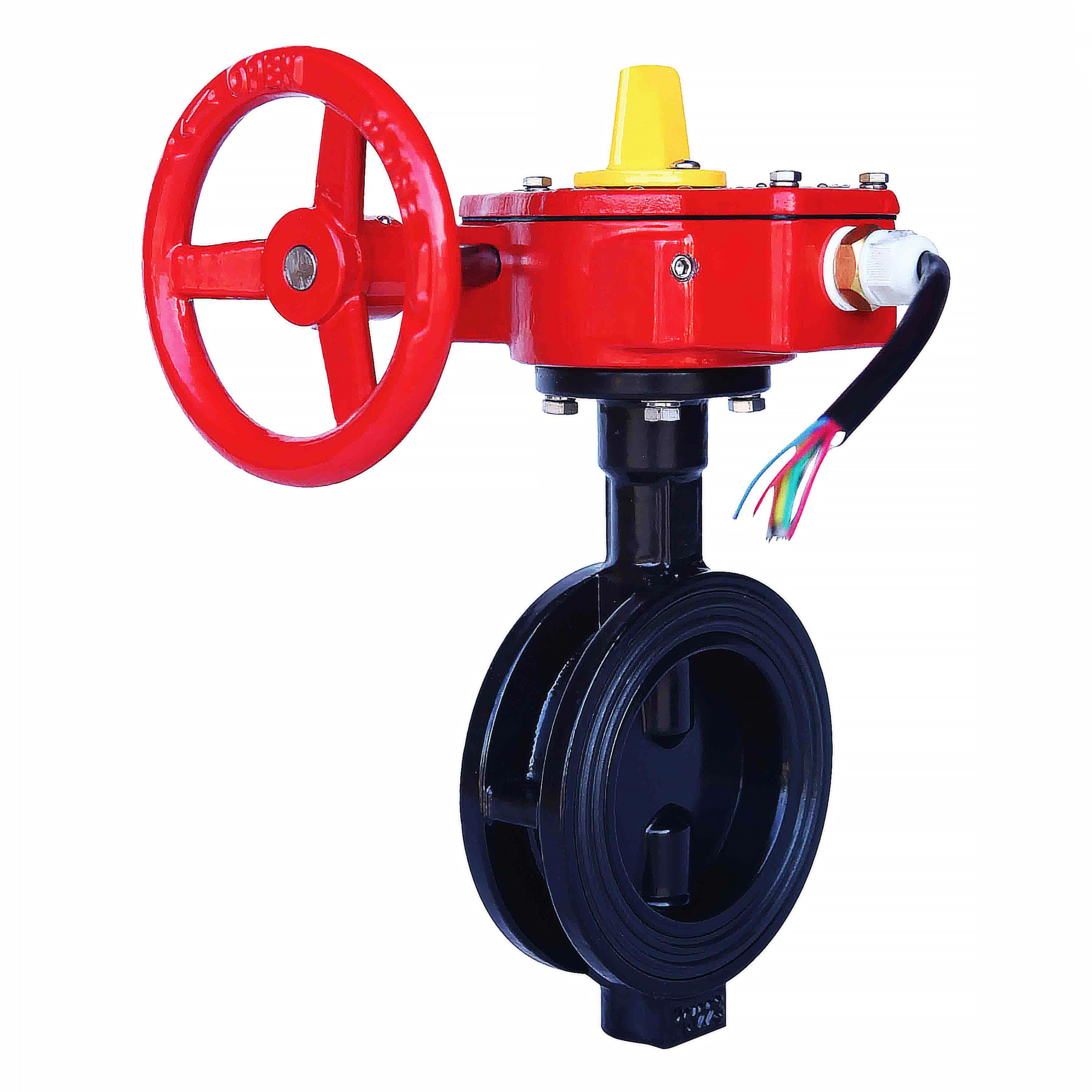

Wafer Butterfly Valve with Tamper Switch (JKDWD-371X/JKDWD-371Y)
$220.00
Overview:
The Wafer Butterfly Valve with Tamper Switch (JKDWD-371X/JKDWD-371Y) is designed for secure flow control in fire protection and water distribution systems. Featuring a tamper switch for enhanced security monitoring, this valve provides reliable operation in high-pressure environments. The wafer design ensures compact and efficient installation between flanges, making it ideal for tight spaces.
Key Features:
- Size Range: 2" - 12"
- Certification: Approved by UL, FM, and NSF for fire protection and water systems
- Design Standard: MSS SP-67
- Connection Type: Flanged to ASME B16.1 Class 125 / ASME B16.42 Class 150
- Top Flange Standard: ISO 5211
- Stem Operation: Driven by keys, parallel or diagonal square, or flat head
- Pressure Rating: 300 PSI (200 PSI and 250 PSI options available upon request)
- Operating Temperature: 32℉ - 176℉
- Coating: Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550 (or optional painting upon request)
- Applications: Ideal for fire protection systems and water distribution networks, providing dependable flow control with tamper switch functionality for enhanced security and system integrity
