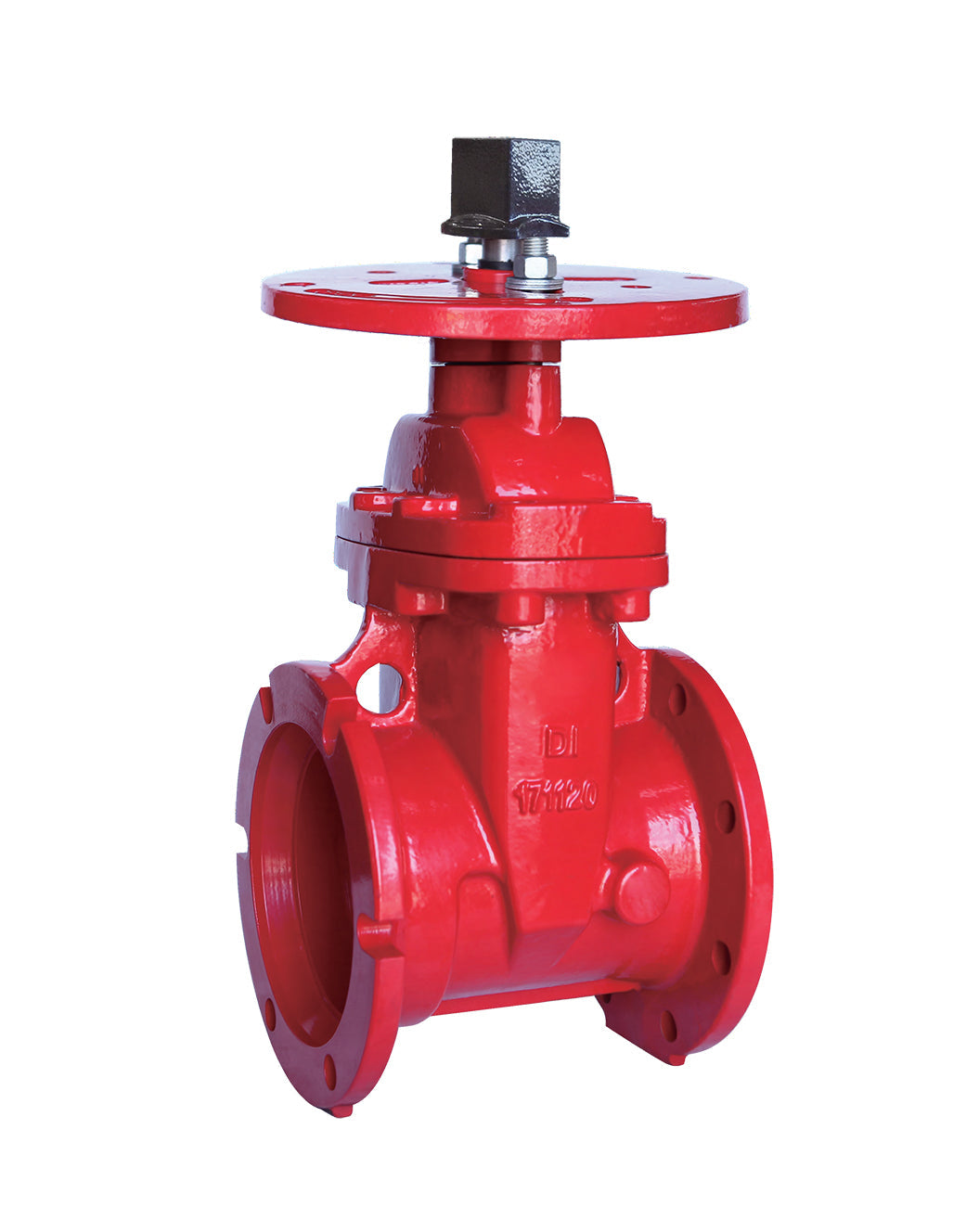

AWWA C515 NRS MJ x FLG Gate Valve With Post Plate (JKDZ45FMPF)
Sale price
$449.99
Regular price
$450.00
Overview:
The AWWA C515 NRS MJ x FLG Gate Valve with Post Plate (JKDZ45FMPF) is engineered for high-performance fire protection and water distribution systems. Featuring a non-rising stem (NRS) design and post plate, this valve offers superior flow control, with both mechanical joint (MJ) and flanged connections for versatile installation options.
Key Features:
- Size Range: 3" - 12"
- Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
- Certification: Approved by UL, FM, and NSF
- Design Standards: Flanged to ASME B16.1 Class 125 / ASME B16.42 Class 150; Mechanical Joint (MJ) to ANSI/AWWA C153/A21.53 and ANSI/AWWA C110/A21.10
- Pressure Rating: 300 PSI
- Connection Type: Flanged and Mechanical Joint (MJ)
- Operating Temperature: 32℉ - 176℉
- Special Features: Equipped with a post plate for efficient system control in fire protection applications
- Applications: Ideal for fire protection systems and high-pressure water distribution networks
